new

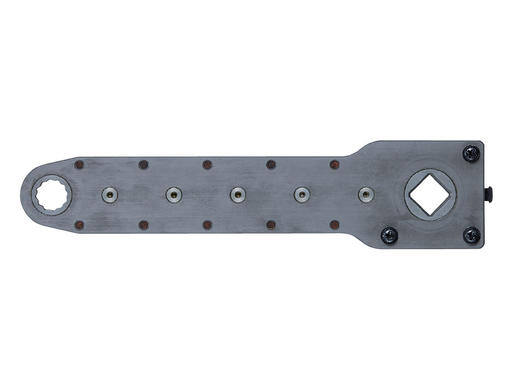

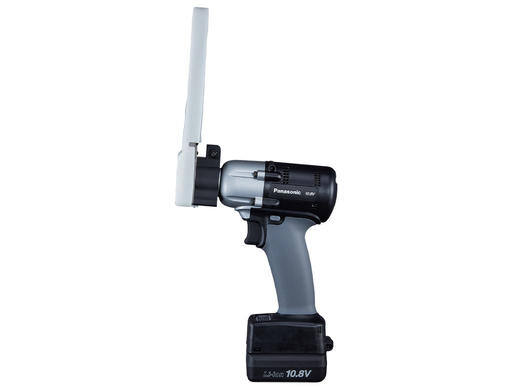

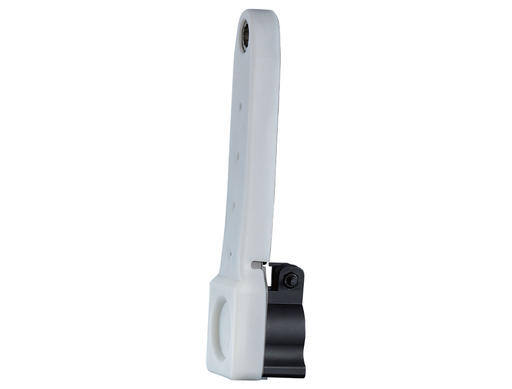

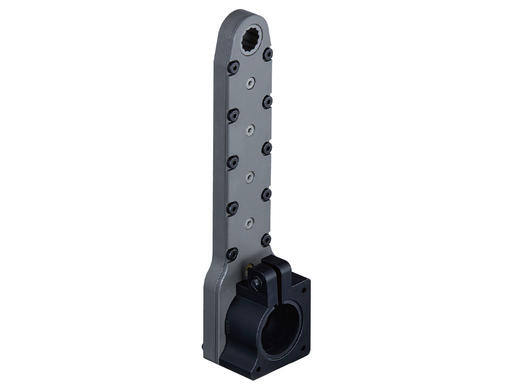

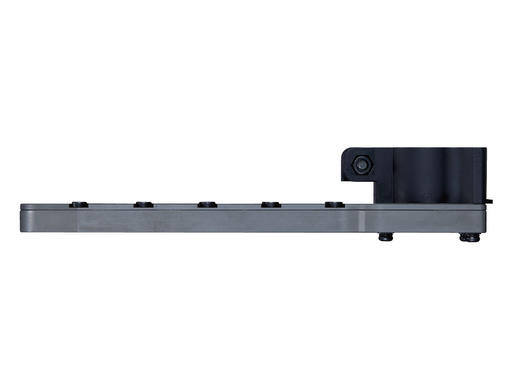

AccuPulse® Gear Attachment
Introducing an attachment for narrow applications.
| Gear Attachment | Panasonic Tool |
|---|---|
| EYFA50 | EYFLA8 |
| EYFA51 | EYFLA9 |
| EYFA52 | EYFLF2 |
- Improve door hinge applications, tightening, and loosening bolts in hard to reach narrow applications
- 3 different models available to best suite your application needs
- Can be adjusted based on posture and position
Product Specifications
Download the Full Spec Sheet| SKU | EYFA50B | EYFA51B | EYFA52B |
|---|---|---|---|
| Performance (Bolt dia.) | M8 (Normal to tensile bolt) | M8 (Normal to tensile bolt) | M8 (Normal bolt) |
| Output side dimension | Diameter 12mm (M8 bolt) | Diameter 12mm (M8 bolt) | Diameter 12mm (M8 bolt) |
| Input side dimension | 3/8" | 1/2" | 3/8" |
| Max. torque | 19 Nm (3 sec) | 26 Nm (2 sec) | 15 Nm (3 sec) |
| Work capacity / Fastening speed (with EYFB30 Battery) | 170 pcs./pack - 3 sec/1pcs. | 150 pcs./pack - 2 sec/1pcs. | 230 pcs./pack - 3 sec/1pcs. |
| Work capacity / Fastening speed (with EYFB32 Battery) | 110 pcs./pack - 3 sec/1pcs. | 100 pcs./pack - 2 sec/1pcs. | 145 pcs./pack - 3 sec/1pcs. |
| Weight | 1.57 lbs. | 1.54 lbs. | 1.57 lbs. |
