Handheld Microdrivers - Eco
Model:
- ng-eTDH100-xu
- ng-eTDH100-xi
- ng-eTDH200-xu
- ng-eTDH200-xi
- ng-eTDH400-xu
- ng-eTDH400-xi
- ng-eTDH500-xu
- ng-eTDH500-xi
- ng-eTDH1000-xu
- ng-eTDH1000-xi

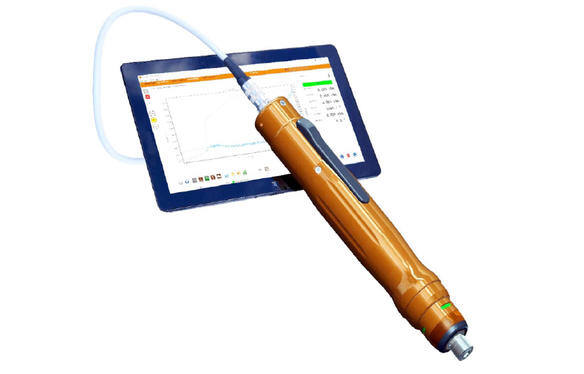

n-gineric Eco MicroDrivers deliver precise torque measurement in a handheld screwdriver. Built-in intelligence and digital interfaces allow easy plug and play connection to a PC to directly observe and document the joint signature.
A fully integrated digital force measurement system includes measurement, analysis, and evaluation software. Simultaneous graphic visualizations ensure optimal process transparency.
- Eco - 2% of the F.S.R. - Compact footprint
- Measurement ranges from 10 cNm – 10 Nm
- Strain gauge based rotary torque sensor at the bit Chuck
- Adaptive screw tightening strategies
- 24-bit resolution of the torque measurement
- Brushless DC motor
Product Specifications
Model | ng-eTDH100-xu | ng-eTDH100-xi | ng-eTDH200-xu | ng-eTDH200-xi | ng-eTDH400-xu | ng-eTDH400-xi | ng-eTDH500-xu | ng-eTDH500-xi | ng-eTDH1000-xu | ng-eTDH1000-xi |
---|---|---|---|---|---|---|---|---|---|---|
Torque Range* | 10 - 100 cNm | 10 - 100 cNm | 20 - 200 cNm | 20 - 200 cNm | 40 - 400 cNm | 40 - 400 cNm | 0.5 - 5 Nm | 0.5 - 5 Nm | 1 - 10 Nm | 1 - 10 Nm |
Interface | USB | Intelligent | USB | Intelligent | USB | Intelligent | USB | Intelligent | USB | Intelligent |
Drive Type | 1/4" Hex Drive | 1/4" Hex Drive | 1/4" Hex Drive | 1/4" Hex Drive | 1/4" Hex Drive | 1/4" Hex Drive | 1/4" Hex Drive | 1/4" Hex Drive | 1/4" Hex Drive | 1/4" Hex Drive |
RPM | 100 - 1300 | 100 - 1300 | 100 - 800 | 100 - 800 | 100 - 800 | 100 - 800 | 100 - 600 | 100 - 600 | 100 - 600 | 100 - 600 |
