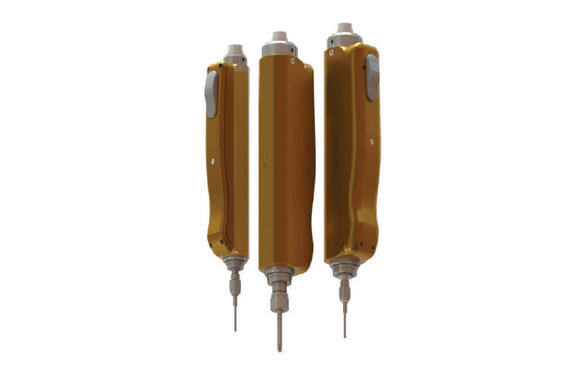

Handheld Microdriver - Ultra Compact

Model:

  • ng-TDH10-hu
  • ng-TDH10-hi
  • ng-TDH20-hu
  • ng-TDH20-hi
  • ng-TDH50-hu
  • ng-TDH50-hi
  • ng-TDH100-hu
  • ng-TDH100-hi
Product Specifications

n-gineric Ultra compact MicroDrivers deliver precise torque measurement in a handheld screwdriver. Built-in intelligence and digital interfaces allow easy plug and play connection to a PC to directly observe and document the joint signature.

A fully integrated digital force measurement system includes measurement, analysis, and evaluation software. Simultaneous graphic visualizations ensure optimal process transparency.

Contact Sales Find A Dealer

  • Ultra Compact - 1% of the F.S.R. - Ultra Compact footprint
  • Measurement ranges from 1 cNm – 10 Nm
  • Strain gauge rotary torque sensor at the bit chuck
  • Adaptive screw tightening strategies
  • 24 bit resolution of the torque measurement
  • Brushless DC motor

Product Specifications

Model ng-TDH10-hu ng-TDH10-hi ng-TDH20-hu ng-TDH20-hi ng-TDH50-hu ng-TDH50-hi ng-TDH100-hu ng-TDH100-hi
Torque Range* 1 - 10 cNm 1 - 10 cNm 2 - 20 cNm 2 - 20 cNm 5 - 50 cNm 5 - 50 cNm 10 - 100 cNm 10 - 100 cNm
Interface USB Intelligent USB Intelligent USB Intelligent USB Intelligent
Drive Type 4mm Halfmoon 4mm Halfmoon 4mm Halfmoon 4mm Halfmoon 4mm Halfmoon 4mm Halfmoon 4mm Halfmoon 4mm Halfmoon
RPM 100 - 1000 100 - 1000 100 - 1000 100 - 1000 100 - 1300 100 - 1300 100 - 1300 100 - 1300

Additional Model #'s

ng-TDH200-xu 20, ng-TDH200-xi 20, ng-TDH400-xu 40, ng-TDH400-xi 40, ng-TDH500-xu 0.5, ng-TDH500-xi 0.5, ng-TDH600-xu 0.6 ,ng-TDH600-xi 0.6, ng-TDH1000-xu  1, ng-TDH1000-xi, ng-TDHQ10-hu 1, ng-TDHQ10-hi 1, ng-TDHQ20-hu 2, ng-TDHQ20-hi 2, ng-TDHQ50-hu 5, ng-TDHQ50-hi 5, ng-TDHQ100-hu 10, ng-TDHQ100-hi 10, ng-TDHQ200-xu 20, ng-TDHQ200-xi 20, ng-TDHQ400-xu 40, ng-TDHQ400-xi 40, ng-TDHQ500-xu 0.5, ng-TDHQ500-xi, ng-TDH10-hu,  ng-TDH10-hi, ng-TDH20-hu, ng-TDH20-hi, ng-TDH50-hu, ng-TDH50-hi, ng-TDH100-hu , ng-TDH100-hi

* Required.
