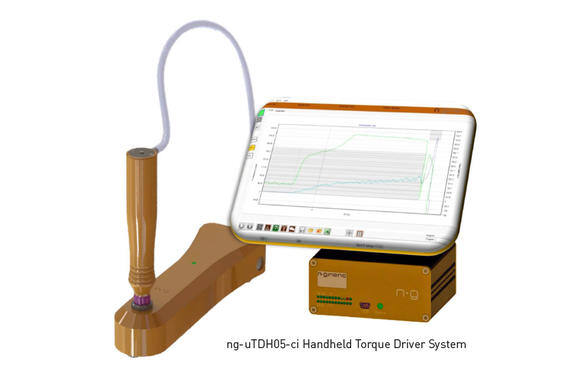

Handheld MicroDriver - Ultra Low Torque
n-gineric Ultra low torque MicroDriver delivers precise torque measurement in a handheld screwdriver in the lowest torque. Designed for precision torque management for the worlds finest watch makers and alike. Built-in intelligence and digital interfaces allow easy plug and play connection to a PC to directly observe and document the joint signature.
A fully integrated digital force measurement system includes measurement, analysis, and evaluation software. Simultaneous graphic visualizations ensure optimal process transparency. Software included at no extra expense.
- Ultra Low Torque - 3% of the F.S.R. - Compact footprint
- Measurement ranges from 5 mNm – 50 mNm
- Static Strain gauge torque sensor
- Adaptive screw tightening strategies
- Vacuum suction through the handpiece
- Brushless DC motor with planetary gearbox
Product Specifications
| Model | ng-uTDH05-cu | ng-uTDH05-ci |
|---|---|---|
| Torque Range* | 5 - 50 mNm | 5 - 50 mNm |
| Interface | USB | Intelligent |
| Drive Type | 1.5mm Cylindric | 1.5mm Cylindric |
| RPM | 100 - 1000 | 100 - 1000 |
