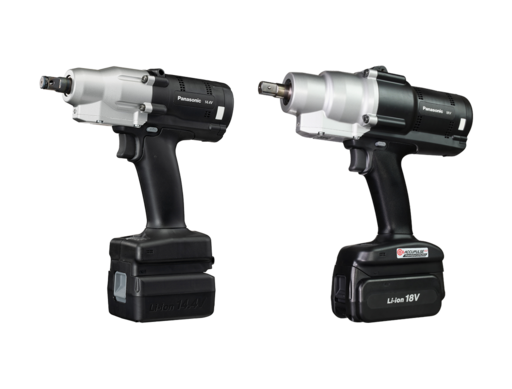

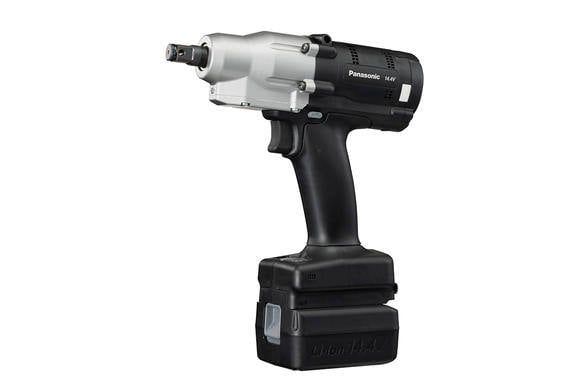

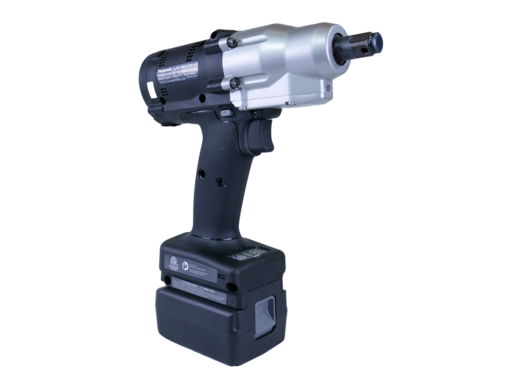

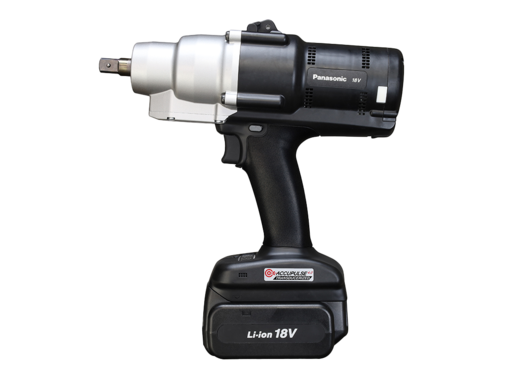

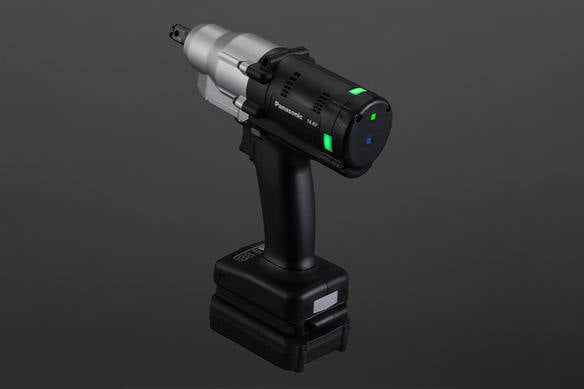

AccuPulse® 4.0 Transducerized
Models :
- EYFMH1RC
- EYFMH1RP
- EYFMH2RC
- EYFMH2RP
- EYFMH1XC
- EYFMH1XP
- EYFMH2XC
- EYFMH2XP
- EYFNH1RC
- EYFNH1RP
Take fastening accuracy and quality manufacturing to a higher level with Panasonic’s next generation transducerized mechanical pulse tool.
AccuPulse 4.0 offers the advanced precision, comprehensive data collection and best-in-class reactionless ergonomics. Four onboard microcomputers and transducer intelligently manage torque sensing, motor control, power, and wireless communication for an Industry 4.0 compatible assembly solution like no other.
- One-hand cordless operation with no reaction for increased worker safety and freedom of movement with a torque control range 20-220 Nm
- Highly Durable Non-Contact Transducer for reliable torque measurement
- Patented torque traceability and torque curve detection algorithm for high accuracy
- Unique drive mechanism for optimized torque calculations
- Advanced programmable features for greater productivity and plant automation
- Wireless 2-way communication
- Data collection for monitoring torque, angle, time, OK, NOK, pulses and fastening curves
- Eco-friendly, low maintenance & energy efficient
- Accupulse 4.0 Training Guide
- Energy Savings Calculator (XLS)
- Digitize AccuPulse 4.0 Catalog (HTML)
- Panasonic Intelligent Assembly Systems Catalog (PDF)
- Panasonic AccuPulse 4.0 Transducerized HT Brochure (PDF)
- AccuPulse 4.0 HT Transducerized - Full Specs (PDF)
- AccuPulse 4.0 Transducerized Data Sheet - Full Specs (PDF)
- AccuPulse 4.0 Owner’s Manual (PDF)
- AccuPulse 4.0 HT Owner’s Manual (PDF)
- AccuPulse 4.0 Quick Reference Guide (PDF)
- AccuPulse 4.0 Extended Reference Guide (PDF)
- Learning AP 4.0 to the Controller (PDF)
- Best Practices (PDF)
- Assembly Tools Setup Worksheet (XLS)
- Tool Manager software v1.05.00 use for AccuPulse 4.0
- EYFR03 v1.8.3 Controller Firmware (Includes Accupuluse 4.0)
- EYFR04 v4.4.3 Controller Firmware (Includes Accupuluse 4.0)
- Assembly Manager Controller Software v1.8.2
- EYFMH-EYFB41B (ZIP)
- EYFMH-EYFB43B (ZIP)
- FNH1-FB50 (ZIP)
- Limited Warranty (PDF)
- EYFR02_1v1.1.3 Controller Firmware (Includes AccuPulse 4.0)
- EYFR02_2v2.1.3 Controller Firmware (Includes AccuPulse 4.0)
Product Specifications
Download the Full Spec Sheet| Models | EYFMH1RC | EYFMH1RP | EYFMH2RC | EYFMH2RP | EYFMH1XC | EYFMH1XP | EYFMH2XC | EYFMH2XP | EYFNH1RC | EYFNH1RP |
|---|---|---|---|---|---|---|---|---|---|---|
| Series | AccuPulse® 4.0 Transducerized with 2 Way Communication | AccuPulse® 4.0 Transducerized with 2 Way Communication | AccuPulse® 4.0 Transducerized with 2 Way Communication | AccuPulse® 4.0 Transducerized with 2 Way Communication | AccuPulse® 4.0 Transducerized | AccuPulse® 4.0 Transducerized | AccuPulse® 4.0 Transducerized | AccuPulse® 4.0 Transducerized | AccuPulse 4.0® HT Transducerized with Wireless Communication | AccuPulse 4.0® HT Transducerized with Wireless Communication |
| Drive | C = 1/2" Square Drive with Ring Retainer and Through Hole | P = 1/2" Square Drive Pin Detent | C = 1/2" Square Drive with Ring Retainer and Through Hole | P = 1/2" Square Drive Pin Detent | C = 1/2" Square Drive with Ring Retainer and Through Hole | P = 1/2" Square Drive Pin Detent | C = 1/2" Square Drive with Ring Retainer and Through Hole | P = 1/2" Square Drive Pin Detent | C= 1/2" Square Drive with Retainer Ring and Through Hole | P = 1/2" Square Drive Pin Detent |
| Voltage | 14.4V | 14.4V | 14.4V | 14.4V | 14.4V | 14.4V | 14.4V | 14.4V | 18V | 18V |
| Transducer | Highly Durable Magnetostrictive Non-Contact Transducer | Highly Durable Magnetostrictive Non-Contact Transducer | Highly Durable Magnetostrictive Non-Contact Transducer | Highly Durable Magnetostrictive Non-Contact Transducer | Highly Durable Magnetostrictive Non-Contact Transducer | Highly Durable Magnetostrictive Non-Contact Transducer | Highly Durable Magnetostrictive Non-Contact Transducer | Highly Durable Magnetostrictive Non-Contact Transducer | Highly Durable Magnetostrictive Non-Contact Transducer | Highly Durable Magnetostrictive Non-Contact Transducer |
| Recommended Application | M8 bolt (Tensile bolt) M10 bolt (Normal bolt) | M8 bolt (Tensile bolt) M10 bolt (Normal bolt) | M10 bolt (Tensile bolt) M12 bolt (Normal bolt) | M10 bolt (Tensile bolt) M12 bolt (Normal bolt) | M8 bolt (Tensile bolt) M10 bolt (Normal bolt) | M8 bolt (Tensile bolt) M10 bolt (Normal bolt) | M10 bolt (Tensile bolt) M12 bolt (Normal bolt) | M10 bolt (Tensile bolt) M12 bolt (Normal bolt) | M12 - M14 bolt (Tensile bolt) M16 - M18 bolt (Normal bolt) | M12 - M14 bolt (Tensile bolt) M16 - M18 bolt (Normal bolt) |
| Recommended Torque Range (Hard joint, Short socket 40mm) | 20-60 Nm (Setting range: 10-70 Nm) | 20-60 Nm (Setting range: 10-70 Nm) | approx. 50-80 Nm (Setting range: 30-140 Nm) | approx. 50-80 Nm (Setting range: 30-140 Nm) | 20-60 Nm (Setting range: 10-70 Nm) | 20-60 Nm (Setting range: 10-70 Nm) | approx. 50-80 Nm (Setting range: 30-140 Nm) | approx. 50-80 Nm (Setting range: 30-140 Nm) | 70-220 Nm (Setting range: 50-250 Nm) | 70-220 Nm (Setting range: 50-250 Nm) |
| No load speed (unit: rpm) | 0-2,300 rpm (Max. rpm is adjustable from 1,500 to 2,300 in 100 rpm increments) | 0-2,300 rpm (Max. rpm is adjustable from 1,500 to 2,300 in 100 rpm increments) | 0-2,300 rpm (Max. rpm is adjustable from 1,500 to 2,300 in 100 rpm increments) | 0-2,300 rpm (Max. rpm is adjustable from 1,500 to 2,300 in 100 rpm increments) | 0-2,300 rpm (Max. rpm is adjustable from 1,500 to 2,300 in 100 rpm increments) | 0-2,300 rpm (Max. rpm is adjustable from 1,500 to 2,300 in 100 rpm increments) | 0-2,300 rpm (Max. rpm is adjustable from 1,500 to 2,300 in 100 rpm increments) | 0-2,300 rpm (Max. rpm is adjustable from 1,500 to 2,300 in 100 rpm increments) | 0-1,900 rpm (Max. rpm is adjustable from 1,300 to 1,900 in 100 rpm increments) | 0-1,900 rpm (Max. rpm is adjustable from 1,300 to 1,900 in 100 rpm increments) |
| Pulses per minute | 0 -2,700 | 0 -2,700 | 0 - 2,600 | 0 - 2,600 | 0 -2,700 | 0 -2,700 | 0 - 2,600 | 0 - 2,600 | 0 - 2,400 | 0 - 2,400 |
