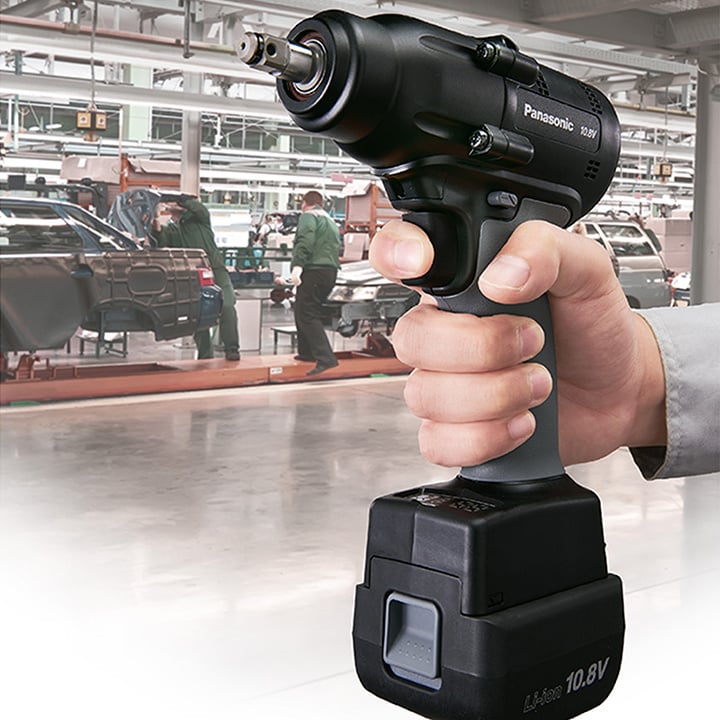

AccuPulse® QP Low Noise Series
Models:
- EYFLF1RA
- EYFLF1RC/RP
- EYFLF2RA
- EYFLF2RC/RP
- EYFLF1XA
- EYFLF1XC/XP
- EYFLF2XA
- EYFLF2XC/XP
AccuPulse® Quiet Pulse (QP) Series delivers the same renowned AccuPulse ergonomics and precision - with low noise and less vibration. A newly-designed anvil shaft and drive mechanism improves operator health and safety, while producing a quieter work environment on your plant floor. A choice of two models offers versatility and accuracy within a 3Nm - 35Nm torque range.
- Split anvil shaft design and larger drive mechanism delivers precision torque with less vibration & noise
- Versatile 3-35Nm torque control range with 1/4” and 3/8” drive options
- High resolution encoder and seven flush point detection levels enables increased accuracy on varying joint types
- Advanced programmable features for higher worker productivity and plant automation
- Optional wireless 2-way communication supports advanced error proofing
- AccuPulse® QP Datasheet (PDF)
- Best Practices Guide (PDF)
- Assembly Tools Setup Worksheet (XLS)
- Assembly Tools Calculator (XLS)
- EYFLF1/2 Owners Manual (PDF)
- Panasonic Intelligent Assembly Systems Catalog (PDF)
- Panasonic AccuPulse QP Brochure (PDF)
- FLF1XA-FB30 (CAD)
- FLF1XC-FB30 (CAD)
- Limited Warranty (PDF)
Product Specifications
Download the Full Spec Sheet| Models | EYFLF1RA | EYFLF1RC/RP | EYFLF2RA | EYFLF2RC/RP | EYFLF1XA | EYFLF1XC/XP | EYFLF2XA | EYFLF2XC/XP |
|---|---|---|---|---|---|---|---|---|
| Series | AccuPulse® QP Low Noise with 2 Way Communication | AccuPulse® QP Low Noise with 2 Way Communication | AccuPulse® QP Low Noise with 2 Way Communication | AccuPulse® QP Low Noise with 2 Way Communication | AccuPulse® QP Low Noise | AccuPulse® QP Low Noise | AccuPulse® QP Low Noise | AccuPulse® QP Low Noise |
| Drive | 1/4” Hex quick change | RC : 3/8" Sq. drive Retainer ring and Pin-hole RP : 3/8" Sq. drive Pin-detent | 1/4” Hex quick change | RC : 3/8" Sq. drive Retainer ring and Pin-hole RP : 3/8" Sq. drive Pin-detent | 1/4” Hex quick change | XC : 3/8" Sq. drive Retainer ring and Pin-hole XP : 3/8" Sq. drive Pin-detent | 1/4” Hex quick change | XC : 3/8" Sq. drive Retainer ring and Pin-hole XP : 3/8" Sq. drive Pin-detent |
| Application | Screw M5•M6 (Normal-Tensile bolt) M8 bolt (Normal bolt) | Screw M5•M6 (Normal-Tensile bolt) M8 bolt (Normal bolt) | M6 bolt (Tensile bolt) M8 bolt (Normal-Tensile bolt) | M6 bolt (Tensile bolt) M8 bolt (Normal-Tensile bolt) | Screw M5•M6 (Normal-Tensile bolt) M8 bolt (Normal bolt) | Screw M5•M6 (Normal-Tensile bolt) M8 bolt (Normal bolt) | M6 bolt (Tensile bolt) M8 bolt (Normal-Tensile bolt) | M6 bolt (Tensile bolt) M8 bolt (Normal-Tensile bolt) |
| Maximum torque (F mode, fastening 3 sec.) | approx. 30 Nm (M10 bolt) | approx. 40 Nm (M10 bolt) | approx. 70 Nm (M14 bolt) | approx. 100 Nm (M14 bolt) | approx. 30 Nm (M10 bolt) | approx. 40 Nm (M10 bolt) | approx. 70 Nm (M14 bolt) | approx. 100 Nm (M14 bolt) |
| Shut-off range | approx. 3-20 Nm | approx. 3-20 Nm | approx. 6-35 Nm | approx. 6-35 Nm | approx. 3-20 Nm | approx. 3-20 Nm | approx. 6-35 Nm | approx. 6-35 Nm |
