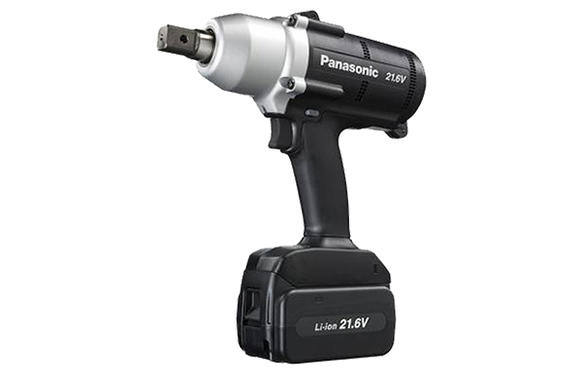

High Torque Cordless Mechanical Pulse Tools
Deliver accurate, repeatable fastening on assembly lines where high-torque, quality control and efficiency and are not optional. Featuring torque controlled range of 70Nm-650Nm and a choice of 1/2” and 3/4” drives, our high-torque auto shut-off mechanical pulse tools produce superior ergonomics with virtually no torque reaction. Cordless battery-powered design available in 18V and 21.6V provides power, freedom of movement and emissions-free operation for demanding heavy manufacturing plants. Tool body only.
- Virtually no torque reaction up to 650Nm, ideal for high torque applications
- M16 Bolt up to 400Nm / M24 Bolt up to 650Nm
- Wireless programmable models for advanced error proofing
- Remote control quick-set features deliver increased fastening accuracy & quality control
- Auto shut-off prevents over torques
- Best Practices Guide (PDF)
- Assembly Tools Setup Worksheet (XLS)
- Energy Savings Calculator (XLS)
- EYFNA1C Owner's Manual (PDF)
- EYFNA1CR Owner's Manual (PDF)
- EYFNA1J Owner's Manual (PDF)
- EYFNA1JR Owner's Manual (PDF)
- EYFNA1P Owner's Manual (PDF)
- EYFNA1PR Owner's Manual (PDF)
- EYFPA1J Owner's Manual (PDF)
- EYFPA1JR Owner's Manual (PDF)
- EYFNA-EYFB50B CAD File
- EYFPA-EYFB60B (ZIP)
- Limited Warranty (PDF)
- Panasonic Intelligent Assembly Systems Catalog (PDF)
Product Specifications
Download the Full Spec Sheet| Models | EYFNA1CRT/JRT/PRT | EYFNA1C/J/P | EYFPA1JRT | EYFPA1J |
|---|---|---|---|---|
| Series | High Torque Mechanical Pulse with 2 Way Communication | High Torque Mechanical Pulse with 2 Way Communication | High Torque Mechanical Pulse | High Torque Mechanical Pulse |
| Voltage | 18v | 18v | 21.6v | 21.6v |
| Drive | C = 1/2” Square Drive with Ring Retainer and Through Hole J = 1/2" Square Drive with Through Hole P = 1/2” Square Drive Pin Detent | C = 1/2” Square Drive with Ring Retainer and Through Hole J = 1/2" Square Drive with Through Hole P = 1/2” Square Drive Pin Detent | J = 3/4” Sq. Through Hole | J = 3/4” Sq. Through Hole |
| Torque Range - Nm | 70-200 Nm | 70-200 Nm | 160-650 Nm | 160-650 Nm |
| Torque Range - ft lbs | 51.6-147.5 ft. lbs. | 51.6-147.5 ft. lbs. | 118-479.4 ft. lbs. | 118-479.4 ft. lbs. |
| Torque Range - in lbs | 619.55-1770.15 in. lbs. | 619.55-1770.15 in. lbs. | 1416.12-5752.98 in. lbs. | 1416.12-5752.98 in. lbs. |
| Max Torque (F mode Tightening 3 seconds) | Approx. 470Nm M24 Bolt | Approx. 470Nm M24 Bolt | Approx. 700Nm M24 Bolt | Approx. 700Nm M24 Bolt |
