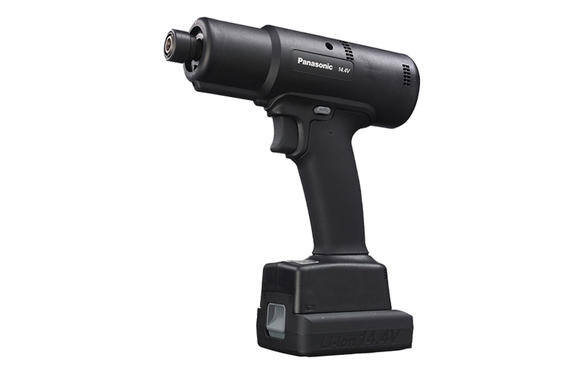

Cordless Basic Clutch Tools
Our precision 14.4V clutch tools provide repeatable fastening accuracy and ergonomics for assembly lines that want greater quality control and operator efficiency. Featuring a 1/4” hex quick-change chuck and all steel fast action clutch, these variable speed drivers deliver a torque range of 2-10Nm with high accuracy ±10% @ Cmk≥1.67. Cordless battery-power and durable brushless motor provides freedom of movement and long-life emissions-free operation. Tool body only.
- 2-10Nm torque control range
- High accuracy ±10% at Cmk≥1.67 – ISO 5393 ≥ 3Nm
- Fast acting all-steel clutch, brushless motor & hybrid switch for long-life durability
- Intelligent auto shut-off ensures greater accuracy
- Lightweight with superior ergonomics for improved worker comfort & safety
- Basic model is budget friendly while maintaining quality and durability
Product Specification
Download the Full Spec SheetModels | EYFGB1N | EYFGB2N | EYFGB3N |
---|---|---|---|
Voltage | 14.4V | 14.4V | 14.4V |
Drive | 1/4" Hex Quick Change | 1/4" Hex Quick Change | 1/4" Hex Quick Change |
Torque Range - Nm | 2-5.5 Nm | 5-8 Nm | 5-10 Nm |
Torque Range - ft lbs | 1.47-4.05 ft.lbs | 3.69-5.16 ft.lbs | 3.69-7.38 ft.lbs |
Torque Range - in lbs | 17.7 - 48.6 in.lbs | 44.2 - 70.8 in.lbs | 44.2 - 88.5 in.lbs |
No Load Speed (RPM) | 0-800 rpm | 0-750 rpm | 0-450 rpm |
Weight with EYFB41B (2.0 Ah) | 2.76 lbs | 2.76 lbs | 2.76 lbs |
Weight with EYFB43B (4.0 Ah) | 3.31 lbs | 3.31 lbs | 3.31 lbs |
