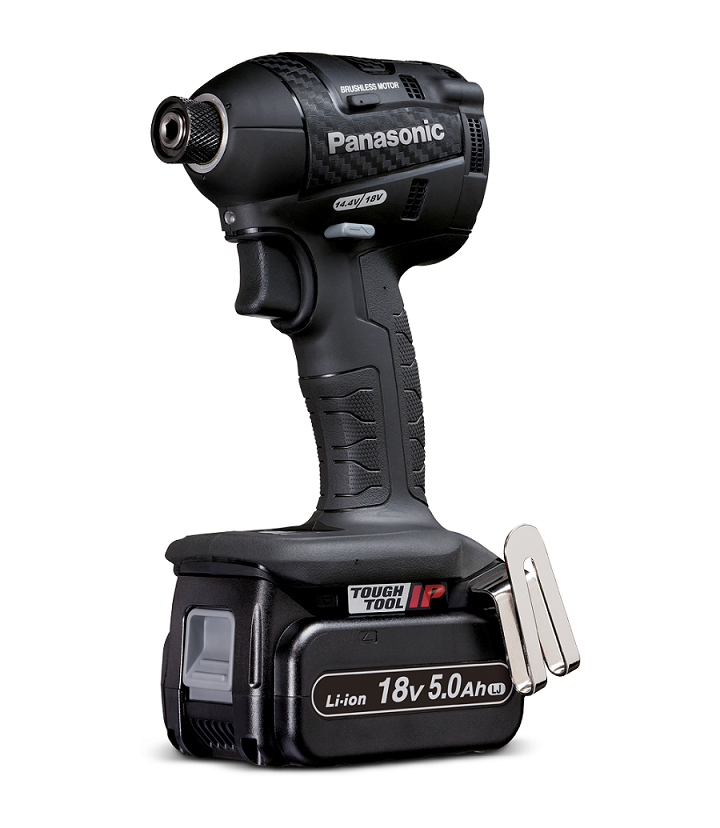

EY75A7X Cordless Professional Impact Tools

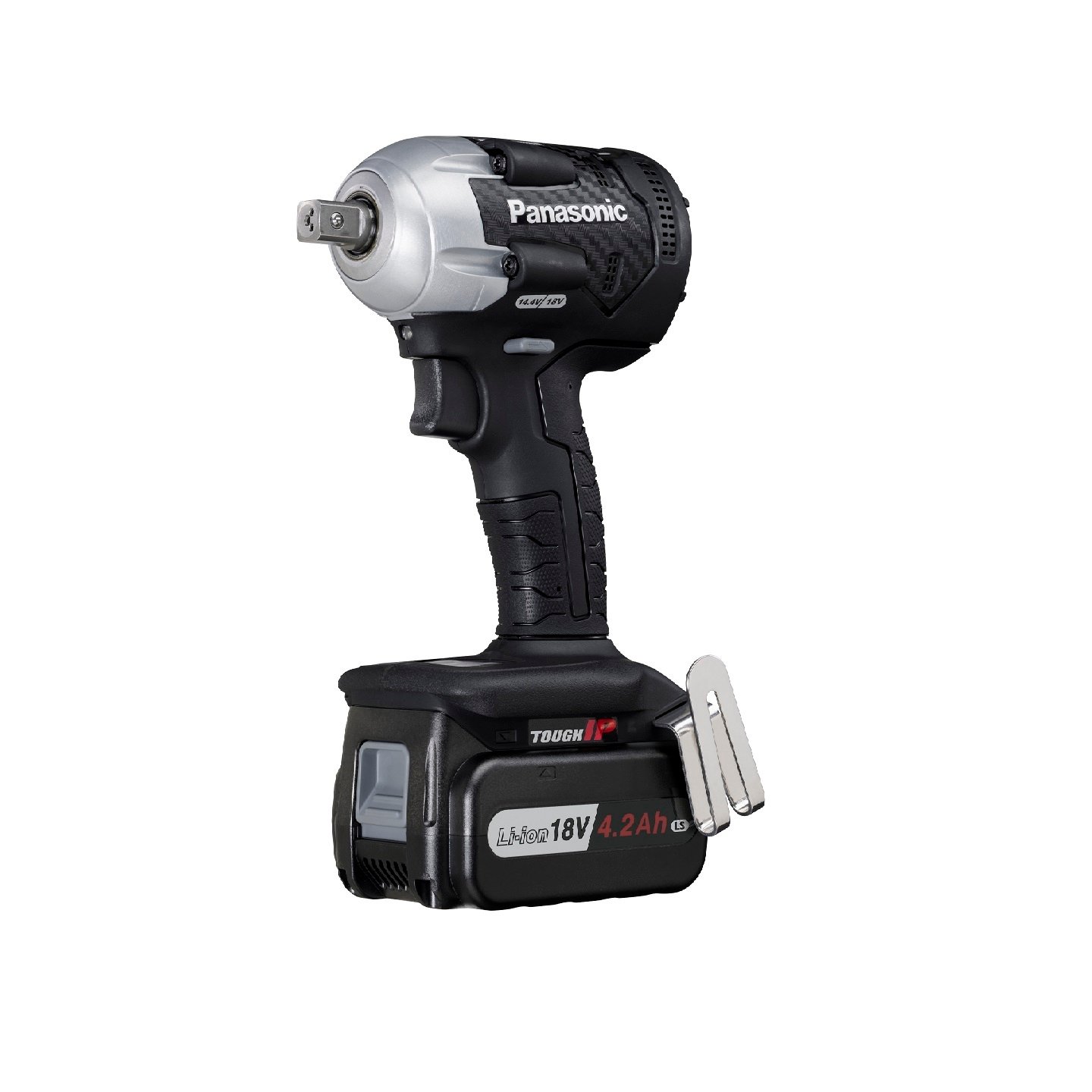

EY75A8X Cordless Professional Impact Tools
EY75A8X Cordless Professional Impact Tools

Compact Cordless Impact Tools

Models:

  • EY75A7X
  • EY75A8X
Product Specifications
Panasonic cordless impact tools are built with power, ergonomics and extreme conditions in mind. Ensure a safe, productive work environment with extended runtime between charges with virtually no torque reaction. The brushless motor and hybrid switch nearly doubles tool life, substantially reducing maintenance costs. Dual voltage technology enables use of our 14.4V or 18V lithium-ion batteries boasting an IP56 rating protecting against dust and water.
Contact Sales Find A Dealer

  • Ideal in automotive, construction, heavy equipment, and recreational vehicle industries
  • Hybrid variable speed reversible switch & brushless motor for dependable long life operation
  • Versatile dual voltage operation accepts 14.4V or 18V Panasonic Li-ion batteries
  • Tough IP™ technology | certified IP56 rating for harsh condition protection

Product Specifications

Download the Full Spec Sheet
Models EY75A7X EY75A8X
Max Torque 1416 in lbs. 2478 in lbs.
RPM 2500 2500
Dimensions 4-21/32" x 9-17/32" x 2-19/32" 5-5/8" x 9-13/16" x 2-7/8"
Weight 3.75 lbs. 3.96 lbs.

Tool Modes

EY75A7X High/Hard Mode Medium Mode Low/Soft Mode Self-drilling Screw Mode
Max Torque 1,416 in. lbs.** 1,150 in. lbs.** 230 in. lbs.*** 1,150 in. lbs.**
Speed at no load 0 - 2,500 rpm 0 - 1,450 rpm 0 - 950 rpm 0 - 2,500 rpm
Impact/min 0 - 3,100 ipm 0 - 2,900 ipm 0 - 1,900 ipm 0 - 1,200 ipm

**M14 High tensile bolt tightening for 3 sec.
***M10 High tensile bolt tightening for 3 sec.

EY75A8X High (M20) Medium (M16) Low (M12)
14.4v 260 Nm | 192 ft. lbs 140 Nm | 103 ft. lbs 120 Nm | 88 ft. lbs
18v 280 Nm | 206 ft. lbs 140 Nm | 103 ft. lbs 120 Nm | 88 ft. lbs

Tough, Durable, and Innovative Design

Panasonic has developed intelligent power tools to increase task efficiency as well as operate in tough conditions of various jobsites. Panasonic continues to evolve its technology and provide tools that meet any type of job requirements.

Self Drilling Screw Mode

Self-Drilling Screw mode starts at highest speed to drill through the metal and then switches to H mode (High impact) to powerfully cut initial thread. After that, load is reduced so it automatically switches to slower S mode (Soft impact) to limit potential of stripping threads on fastener or material.  (Less than Ø4 x 15mm).
