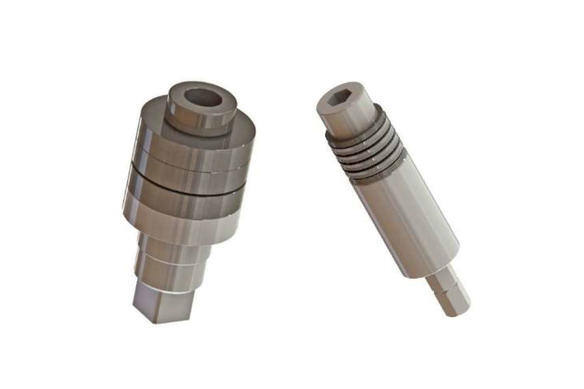

Accessories - Joint Simulators
Model:
- ng-SJS Set 3 mm CYL M1
- ng-SJS Set 3 mm CYL M1.6
- ng-SJS Set 3 mm CYL M2
- ng-SJS Set 1/4" HEX M2
- ng-SJS Set 1/4" HEX M3
- ng-SJS Set 1/4" HEX M4
- ng-SJS Set 1/4" HEX M5
- ng-SJS Set 1/4" HEX M6
Product Specifications
Download the Full Spec Sheet| Model | ng-SJS Set 3 mm CYL M1 | ng-SJS Set 3 mm CYL M1.6 | ng-SJS Set 3 mm CYL M2 | ng-SJS Set 1/4" HEX M2 | ng-SJS Set 1/4" HEX M3 | ng-SJS Set 1/4" HEX M4 | ng-SJS Set 1/4" HEX M5 | ng-SJS Set 1/4" HEX M6 |
|---|---|---|---|---|---|---|---|---|
| Drive | 3 mm Cylindric | 3 mm Cylindric | 3 mm Cylindric | 1/4" Hex Drive | 1/4" Hex Drive | 1/4" Hex Drive | 1/4" Hex Drive | 1/4" Hex Drive |
| Screw Size | M1 | M1.6 | M2 | M2 | M3 | M4 | M5 | M6 |
| Torque Range* | 0.5 – 2.5 cNm | 2 - 10 cNm | 4 - 20 cNm | 4 - 20 cNm | 16 - 80 cNm | 0.4 - 2 Nm | 1 - 5 Nm | 1.6 - 8 Nm |
| Article Number | 01-92-00019-01 | 01-92-00020-01 | 01-92-00002-01 | 01-92-00014-01 | 01-92-00001-01 | 01-92-00003-01 | 01-92-00013-01 | 01-92-00004-01 |
