Force Sensors - Intelligent
Model:
- ng-FTS100-bi
- ng-FTS200-bi
- ng-FTS500-bi
- ng-FTS1000-bi
- ng-FTS2000-bi
- ng-FTS5000-bi
- ng-FTS10000-bi
- ng-FTS20000-bi
- ng-FTS50000-bi

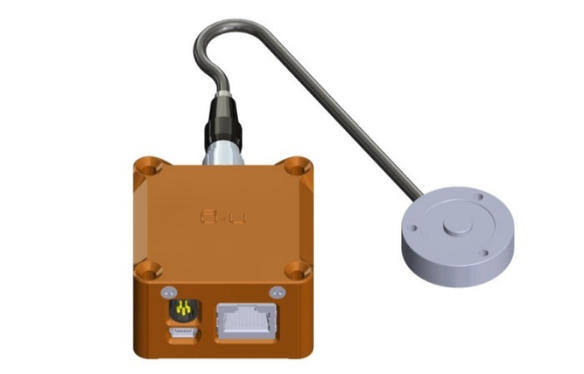

n-gineric Intelligent compression force sensors help you improve quality fastening by accurately measuring applied force, clamp Load, displacement and compression. Sensor system software enables recording graph combinations such as torque, force and displacement. A fully integrated digital force measurement system with software included.
- Intelligent - Compact - ng-Link, standard USB and Ethernet connection
- Intelligent Optional Sensor interface with input for incremental encoder to measure displacement
- Measurement ranges from 100 N to 50 kN
- Sensor interface equipped high precision strain gauge-based button compression sensor
- Force window control
Product Specifications
| Model | ng-FTS100-bi | ng-FTS200-bi | ng-FTS500-bi | ng-FTS1000-bi | ng-FTS2000-bi | ng-FTS5000-bi | ng-FTS10000-bi | ng-FTS20000-bi | ng-FTS50000-bi |
|---|---|---|---|---|---|---|---|---|---|
| Force Range | +/- 100 N | +/- 200 N | +/- 500 N | +/- 1000 N | +/- 2 kN | +/- 5 kN | +/- 10 kN | +/- 20 kN | +/- 50 kN |
| Interface | Intelligent | Intelligent | Intelligent | Intelligent | Intelligent | Intelligent | Intelligent | Intelligent | Intelligent |
| Cell Type | Button Load Cell | Button Load Cell | Button Load Cell | Button Load Cell | Button Load Cell | Button Load Cell | Button Load Cell | Button Load Cell | Button Load Cell |
| Accuracy | 0.25% | 0.25% | 0.25% | 0.25% | 0.50% | 0.50% | 0.50% | 0.50% | 0.50% |
