Handheld Torque Sensors - Analog
Model:
- ng-TTH01-ca
- ng-TTH02-ca
- ng-TTH05-ca
- ng-TTH10-ca
- ng-TTH20-ca
- ng-TTH50-xa
- ng-TTH100-xa
- ng-TTH200-xa

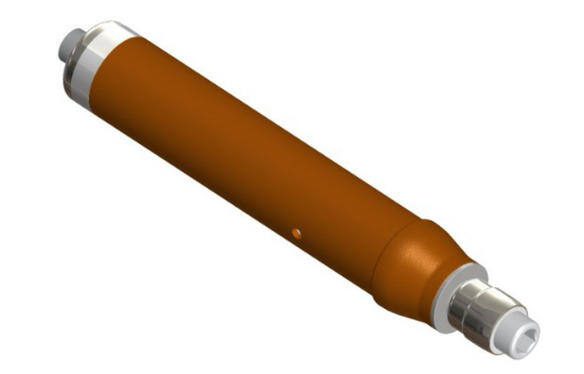

n-gineric analog handheld torque sensors deliver precise torque measurement in a handheld screwdriver-type transducer. Built-in intelligence and digital interfaces allow easy connection to a PC to directly observe and document the measurement process. A fully integrated digital measurement system includes measurement, analysis, and evaluation software. Simultaneous graphic visualizations ensure optimal process transparency.
- Analog - Proprietary threaded USB connector - Requires analog interface cable (01-90-00021-01)
- Analog output - 0 to 5 V, zero point at 2.5 V - 0 to 10 V, zero point at 5 V
- Verifies torque range from 1 cNm – 200 cNm
- External measuring device required
Product Specifications
| Model | ng-TTH01-ca | ng-TTH02-ca | ng-TTH05-ca | ng-TTH10-ca | ng-TTH20-ca | ng-TTH50-xa | ng-TTH100-xa | ng-TTH200-xa |
|---|---|---|---|---|---|---|---|---|
| Torque Range* | +/- 1 cNm | +/- 2 cNm | +/- 5 cNm | +/- 10 cNm | +/- 20 cNm | +/- 50 cNm | +/- 100 cNm | +/- 200 cNm |
| Interface | Analog | Analog | Analog | Analog | Analog | Analog | Analog | Analog |
| Drive Type | 3mm Bore | 3mm Bore | 3mm Bore | 3mm Bore | 3mm Bore | 1/4" Hex Drive | 1/4" Hex Drive | 1/4" Hex Drive |
| Overload Protection | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ |
