Rotary Transducers - Analog and Digital
Model:
- ng-TTR01-ca
- ng-TTR02-ca
- ng-TTR05-ca
- ng-TTR10-ca
- ng-TTR20-ca
- ng-TTR50-ca
- ng-TTR50-ca
- ng-TTR100-ca

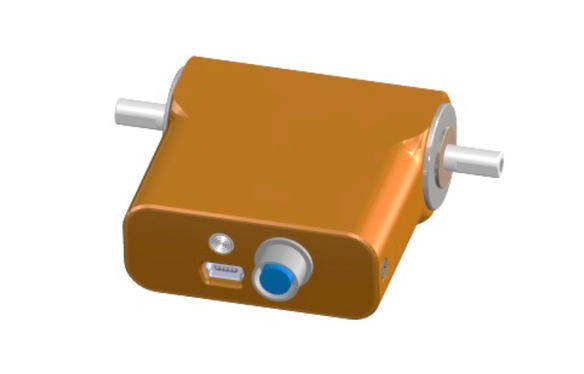

n-gineric Analog + Digital rotary transducers measure accurate torque, speed, and angle. Mount directly to continuous drive tools during assembly for validation and audits. Perform joint analysis based on graph data plotting. No additional proprietary hardware needed
Internal parameter memory makes this plug and play rotary transducer unique to the industry that only requires a Windows PC or Android device.
- Analog + Digital - Ultra compact - Standard USB connector - Optional accessory analog sensor cable 1.5m (01-90-00021-01)
- Analog output
- 0 to 5 V, zero point at 2.5 V
- 0 to 10 V, zero point at 5 V
- Verifies torque range from 1 cNm – 50 Nm
- High resolution Incremental encoder
- Highly portable rotating angle transducer offers quality audit tools for redundancy or final torque
- Graph data plotting and overlay for robust joint signature analysis
- Audit wrench capability enables data via Wi-Fi from tool and Android® devices to PC in real time
Product Specifications
Download the Full Spec Sheet| Model | ng-TTR01-ca | ng-TTR02-ca | ng-TTR05-ca | ng-TTR10-ca | ng-TTR20-ca | ng-TTR50-ca | ng-TTR50-ca | ng-TTR100-ca |
|---|---|---|---|---|---|---|---|---|
| Torque Range* | +/- 1 cNm | +/- 2 cNm | +/- 5 cNm | +/- 10 cNm | +/- 20 cNm | +/- 50 cNm | +/- 50 cNm | +/- 100 cNm |
| Interface | Analog + USB | Analog + USB | Analog + USB | Analog + USB | Analog + USB | Analog + USB | Analog + USB | Analog + USB |
| Drive Type | 3mm Shaft | 3mm Shaft | 3mm Shaft | 5mm Shaft | 5mm Shaft | 8mm Shaft | 8mm Shaft | 8mm Shaft |
| Overload Protection | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | Spec Content | ✔ |
