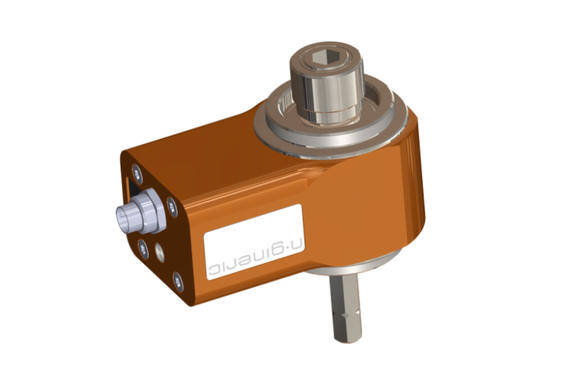

Rotary Transducers - Eco
Model:
- ng-eTTR200-xt
- ng-eTTR200-xu
- ng-eTTR200-xr
- ng-eTTR500-xt
- ng-eTTR500-xu
- ng-eTTR500-xr
- ng-eTTR1000-xt
- ng-eTTR1000-xu
n-gineric Eco rotary transducers measure accurate torque, speed, and angle. Mount directly to continuous drive tools during assembly for validation and audits. Perform joint analysis based on graph data plotting. No additional proprietary hardware needed
- Eco - Compact size - Optional ng-Link and mounting flange
- Threaded USB connector (requires proprietary Cable (01-92-001 16-01)
- Verifies torque range from 2 Nm – 50 Nm
- High resolution incremental encoder
- Highly portable rotating angle transducer offers quality audit tools for redundancy or final torque
- Graph data plotting and overlay for robust joint signature analysis
- Audit wrench capability enables data via Wi-Fi from tool and Android® devices to PC in real time
- High-precision measurement by 24-bit resolution of the torque measurement
Product Specifications
Download the Full Spec Sheet| Model | ng-eTTR200-xt | ng-eTTR200-xu | ng-eTTR200-xr | ng-eTTR500-xt | ng-eTTR500-xu | ng-eTTR500-xr | ng-eTTR1000-xt | ng-eTTR1000-xu |
|---|---|---|---|---|---|---|---|---|
| Torque Range* | +/- 2 Nm | +/- 2 Nm | +/- 2 Nm | +/- 5 Nm | +/- 5 Nm | +/- 5 Nm | +/- 10 Nm | +/- 10 Nm |
| Angle Encoder | ✔ | ✔ | Spec Content | ✔ | ✔ | ✔ | ||
| ng-Link | ✔ | ✔ | ✔ |
✔ | ||||
| Drive Type | 1/4" Hex Drive | 1/4" Hex Drive | 1/4" Hex Drive | 1/4" Hex Drive | 1/4" Hex Drive | 1/4" Hex Drive | 1/4" Hex Drive | 1/4" Hex Drive |
