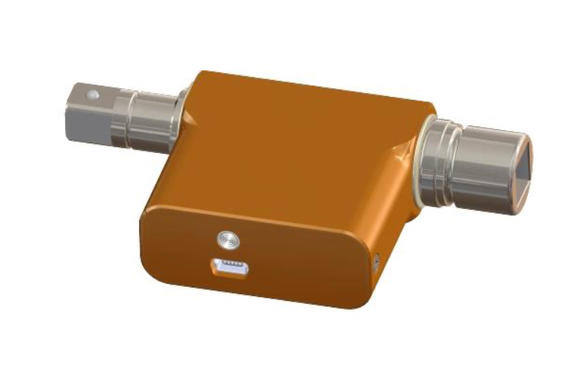

Rotary Transducers - USB

Model:

  • ng-TTR01-cu
  • ng-TTR02-cu
  • ng-TTR05-cu
  • ng-TTR10-cu
  • ng-TTR20-cu
  • ng-TTR50-cu
  • ng-TTR50-cu
  • ng-TTR100-cu
Product Specifications

n-gineric USB rotary transducers measure accurate torque, speed, and angle. Mount directly to continuous drive tools during assembly for validation and audits. Perform joint analysis based on graph data plotting. No additional proprietary hardware needed.

Internal parameter memory makes this plug and play rotary transducer unique to the industry that only requires a Windows PC or Android device.

Contact Sales Find A Dealer

  • USB - Ultra Compact - Standard USB connection
  • Verifies torque range from 1 cNm – 50 Nm
  • High resolution incremental encoder
  • Highly portable rotating angle transducer offers quality audit tools for redundancy or final torque
  • Graph data plotting and overlay for robust joint signature analysis

Product Specifications

Model ng-TTR01-cu ng-TTR02-cu ng-TTR05-cu ng-TTR10-cu ng-TTR20-cu ng-TTR50-cu ng-TTR50-cu ng-TTR100-cu
Torque Range* +/- 1 cNm +/- 2 cNm +/- 5 cNm +/- 10 cNm +/- 20 cNm +/- 50 cNm +/- 50 cNm +/- 100 cNm
Interface USB USB USB USB USB USB USB USB
Drive Type 3mm Shaft 3mm Shaft 3mm Shaft 5mm Shaft 5mm Shaft 8mm Shaft 8mm Shaft 8mm Shaft
Overload Protection Yes Yes Yes Yes Yes Yes Yes
* 10 cNm = 0.1 Nm / 100 cNm = 1 Nm / 1000 cNm = 10 Nm

Additional Features

• Audit wrench capability enables data via Wi-Fi from tool and Android® devices to PC in real time

• High-precision measurement by 24-bit resolution of the torque measurement

Additional Model #'s

ng-TTR01-cu, ng-TTR02-cu, ng-TTR05-cu, ng-TTR10-cu,ng-TTR20-cu, ng-TTR50-cu, ng-TTR100-cu, ng-TTR200-cu, ng-TTR500-cu, ng-TTR1000-cu, ng-TTR2000-cu, ng-TTR50-xu, ng-TTR100-xu,ng-TTR200-xu,ng-TTR500-xu, ng-TTR1000-xu, ng-TTR2000-xu, ng-TTR500-qu, ng-TTR2000-qu, ng-TTR5000-qu
