Stationary Transducers - Analog
Model:
- ng-TTS01-ca
- ng-TTS02-ca
- ng-TTS05-ca
- ng-TTS10-ca
- ng-TTS20-ca
- ng-TTS50-xa
- ng-TTS100-xa
- ng-TTS200-xa

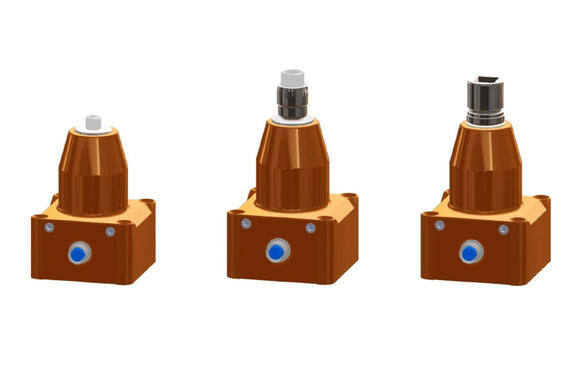

These n-gineric Analog stationary transducers ensure fastening accuracy and quality control on your manufacturing lines. Can be used with discontinuous drive tools, direct drive, oil pulse and mechanical pulse tools . Validate and verify accuracy and repeatability of assembly tools. Software included at no extra expense.
- Analog - Threaded USB connector - Requires analog interface cable (01-90-00021-01
- Analog output - 0 to 5 V, zero point at 2.5 V - 0 to 10 V, zero point at 5 V
- Verifies torque range from 1 cNm – 50 Nm
- External measuring device required
Product Specifications
Download the Full Spec Sheet| Model | ng-TTS01-ca | ng-TTS02-ca | ng-TTS05-ca | ng-TTS10-ca | ng-TTS20-ca | ng-TTS50-xa | ng-TTS100-xa | ng-TTS200-xa |
|---|---|---|---|---|---|---|---|---|
| Torque Range* | +/- 1 cNm | +/- 2 cNm | +/- 5 cNm | +/- 10 cNm | +/- 20 cNm | +/- 50 cNm | +/- 100 cNm | +/- 200 cNm |
| Interface | Analog | Analog | Analog | Analog | Analog | Analog | Analog | Analog |
| Drive Type | 3mm Bore | 3mm Bore | 3mm Bore | 3mm Bore | 3mm Bore | 1/4" Hex Drive | 1/4" Hex Drive | 1/4" Hex Drive |
| Overload Protection | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ |
