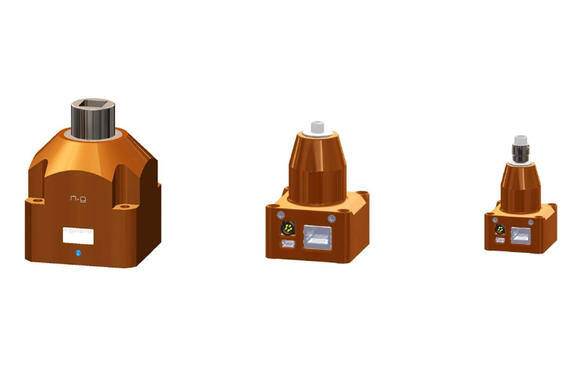

Stationary Transducers - Intelligent
Model:
- ng-TTS01-ci
- ng-TTS02-ci
- ng-TTS05-ci
- ng-TTS10-ci
- ng-TTS20-ci
- ng-TTS50-xi
- ng-TTS100-xi
- ng-TTS200-xi
These n-gineric intelligent stationary transducers ensure fastening accuracy and quality control on your manufacturing lines. Can be used with discontinuous drive tools, direct drive, oil pulse and mechanical pulse tools. Validate and verify accuracy and repeatability of assembly tools. No additional proprietary hardware needed.
Internal parameter memory makes this plug and play stationary transducer unique to the industry that only requires a Windows PC or Android device. Software included at no extra expense.
These n-gineric intelligent stationary transducers ensure fastening accuracy and quality control on your manufacturing lines. Can be used with discontinuous drive tools, direct drive, oil pulse and mechanical pulse tools. Validate and verify accuracy and repeatability of assembly tools. No additional proprietary hardware needed.
Internal parameter memory makes this plug and play stationary transducer unique to the industry that only requires a Windows PC or Android device. Software included at no extra expense.
- Intelligent - ng-Link, standard USB and Ethernet connection
- Verifies torque range from 1 cNm – 1000 Nm
- Strain gauge-based torque measurement with aluminum housing & double ball bearing construction
- High-precision measurement by 24-bit resolution of the torque measurement
Product Specifications
Download the Full Spec Sheet| Model | ng-TTS01-ci | ng-TTS02-ci | ng-TTS05-ci | ng-TTS10-ci | ng-TTS20-ci | ng-TTS50-xi | ng-TTS100-xi | ng-TTS200-xi |
|---|---|---|---|---|---|---|---|---|
| Torque Range* | +/- 1 cNm | +/- 2 cNm | +/- 5 cNm | +/- 10 cNm | +/- 20 cNm | +/- 50 cNm | +/- 100 cNm | +/- 200 cNm |
| Interface | Intelligent | Intelligent | Intelligent | Intelligent | Intelligent | Intelligent | Intelligent | Intelligent |
| Drive Type | 3mm Bore | 3mm Bore | 3mm Bore | 3mm Bore | 3mm Bore | 1/4" Hex Drive | 1/4" Hex Drive | 1/4" Hex Drive |
| Overload Protection | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
