Stationary Transducers - Mechanical Pulse Tools

Model:

  • EYFST22NM

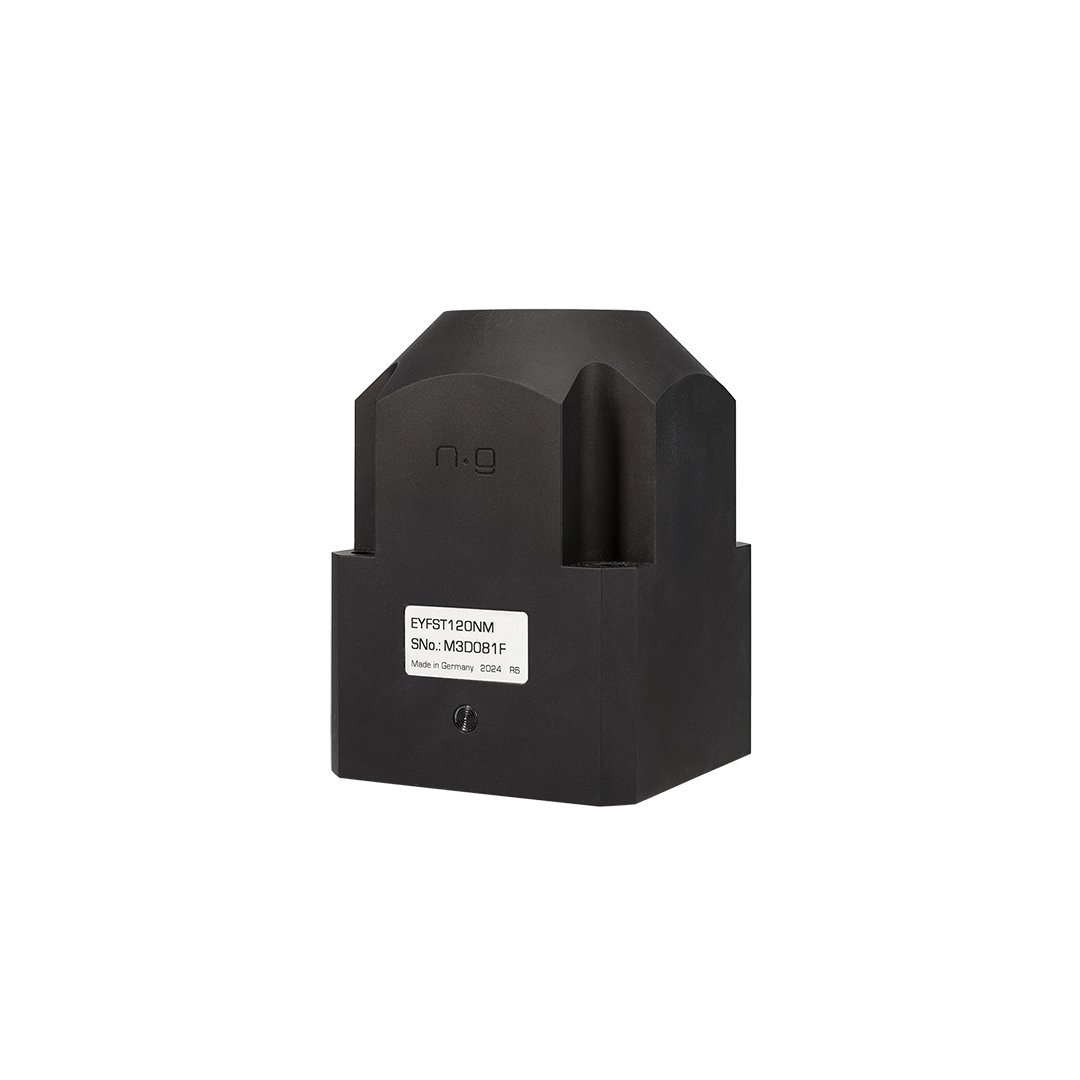

  • EYFST120NM

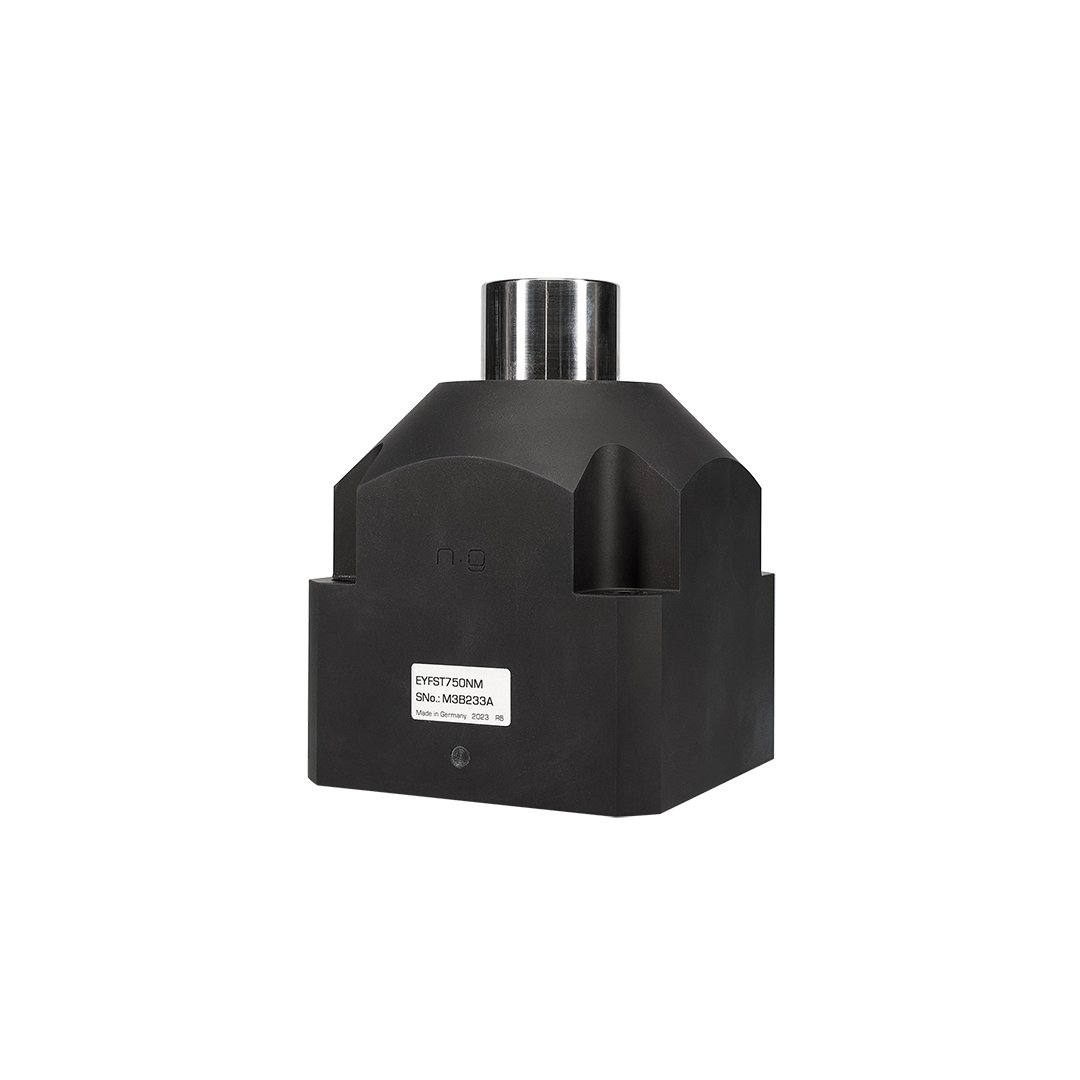

  • EYFST750NM
Product Specifications

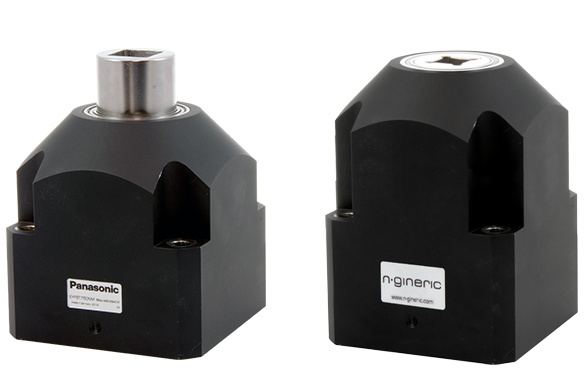

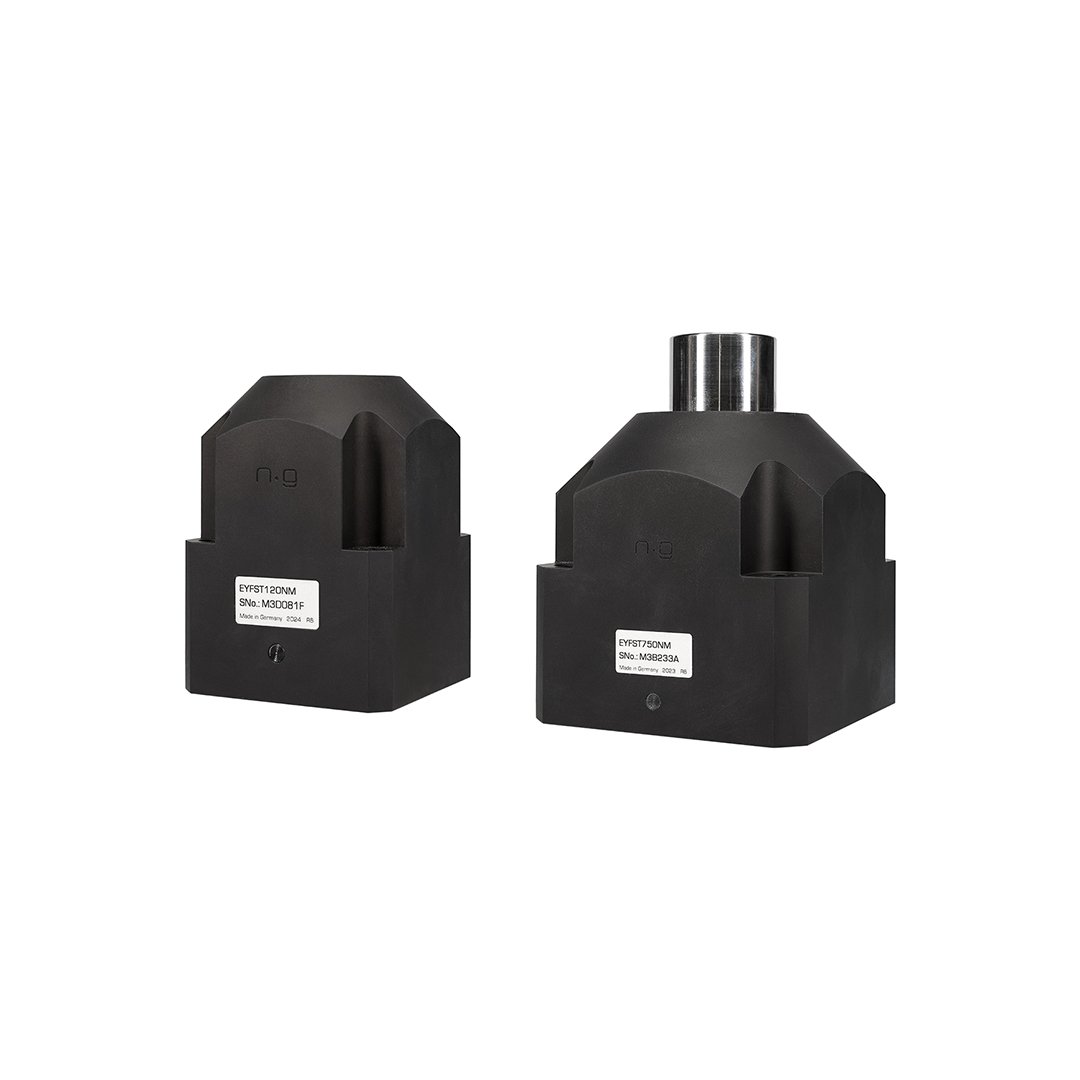

These n-gineric intelligent stationary transducers were made specifically for Panasonic mechanical pulse tools to ensure fastening accuracy and quality control on your manufacturing lines with our joint simulator kits. Can be used with discontinuous drive tools, direct drive, oil pulse and mechanical pulse tools. Validate and verify accuracy and repeatability of assembly tools. No additional proprietary hardware needed.

Internal parameter memory makes this plug and play stationary transducer unique to the industry that only requires a Windows PC or Android device. Software included at no extra expense.

  • Intelligent - ng-Link, standard USB and Ethernet connection
  • Verifies torque range from 2 Nm – 400 Nm
  • Strain gauge-based torque measurement with aluminum housing & double ball bearing construction
  • High-precision measurement by 24-bit resolution of the torque measurement

Joint Simulator Kits

Model EYFJS22NM EYFJS120NM EYFJS120NM -2 EYFJS200NM EYFJS400NM
Torque Range 3-22 Nm 72-120 Nm 22-120 Nm 70-200 Nm 160-400 Nm
Drive 3/8“ Square 1/2“ Square 1/2“ Square 3/4“ Square 3/4“ Square
Bolt Size Power adapter EYSZP001 (sold separately) Input : AC100-240V Output : DC30V/3A Power adapter EYSZP001 (sold separately) Input : AC100-240V Output : DC30V/3A Power adapter EYSZP001 (sold separately) Input : AC100-240V Output : DC30V/3A Power adapter EYSZP001 (sold separately) Input : AC100-240V Output : DC30V/3A Table Row Cell
Included Parts Includes 4.5mm, 5mm, 6mm Washers, M8 Spacer and M8 Base, M8x40mm Bolt, M8x30mm Bolt and Grease Includes 9mm Washers, M14 Spacer, M14 Base, M14x50mm Bolts and Grease Includes 5mm, 5.5mm, 6mm, 9mm Washers, M12 Spacer, M14 Spacer, M12 Base, M14 Base, M12x60mm Bolt, M12x40mm Bolt, M14x50mm and Grease Includes 7mm, 7.5mm, 9mm Washers, M16 Spacer, M16 Base, M16x50mm Bolt and Grease Includes 10mm, 11mm Washers, M24 Spacer, M24 Base, M24x55mm Bolt and Grease

Accupulse 4.0 Validation Kit And Transducer

Model EYFJS-MHK EYFJS-MH1 EYFJS-MH2 EYFJS-NH1
Torque Range AccuPulse 4.0 Validation Kit AccuPulse 4.0 MH1 Validation AccuPulse 4.0 MH2 Validation AccuPulse 4.0 NH1 Validation
Drive 1/2“ Square 1/2“ Square 1/2“ Square 1/2“ Square
Bolt Size M8 and M12 M8 M12 M12
Included Parts Includes EYFJS-MH1, EYFJS-MH2 and EYFJS-NH1 EYFST120 NM(Stationary Transducer), USB, USB Cable and Grease Includes 5mm Washers, M8 Spacer, M8 Base, M8x40mm Bolt and Grease Includes 6mm Washers, M12 Spacer, M12 Base, M12x50mm Bolt and Grease Includes 7mm Washers, M12 Spacer, M12 Base, M12x50mm Bolt and Grease

* 10 cNm = 0.1 Nm / 100 cNm = 1 Nm / 1000 cNm = 10 Nm

Additional Model #'s

EYFST22NM, EYFST120NM, EYFST750NM,EYFJS22NM, EYFJS100NM, EYFJS120NM, EYFJS200NM,
EYFJS400NM
