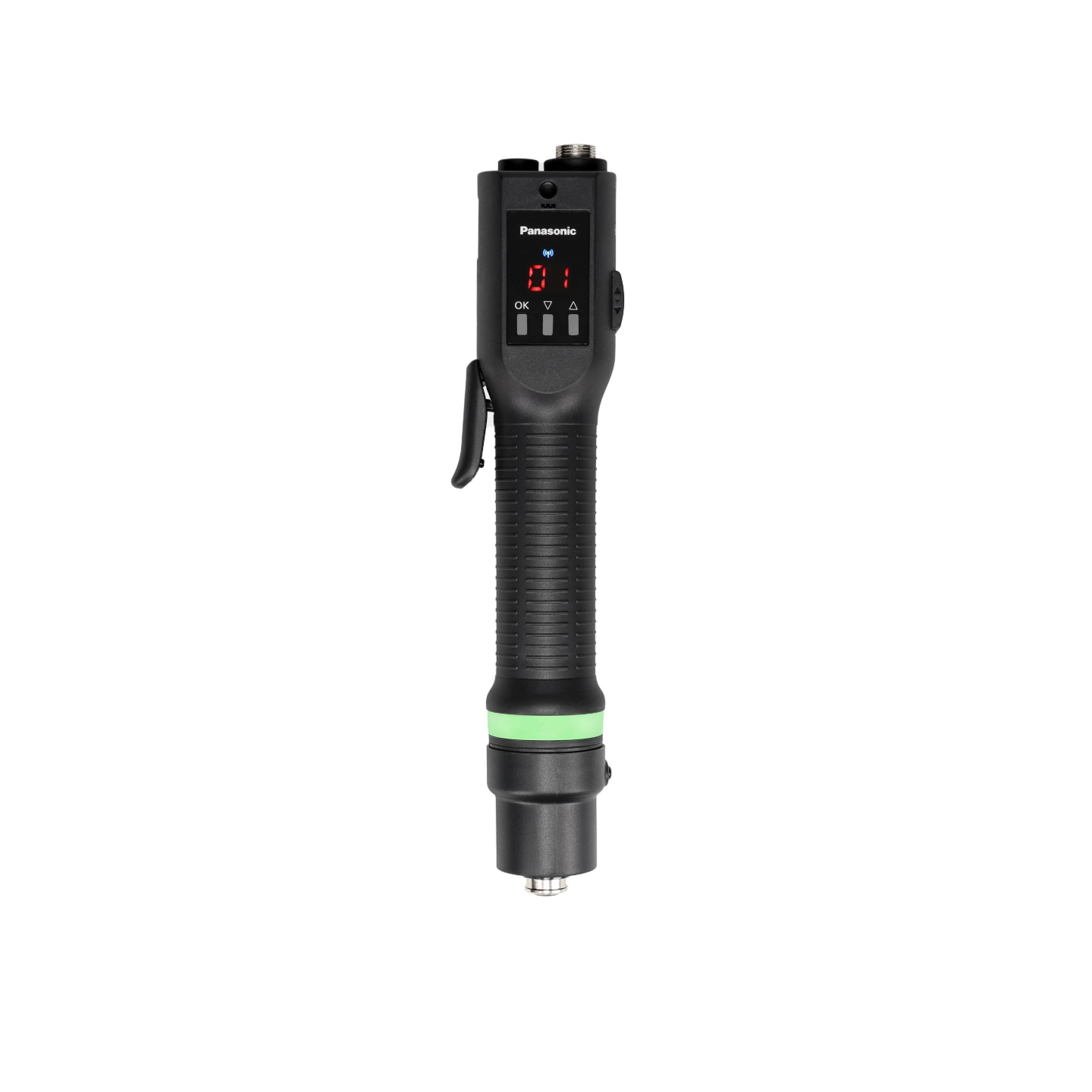

EYADA212WA-type-a-screwdriver

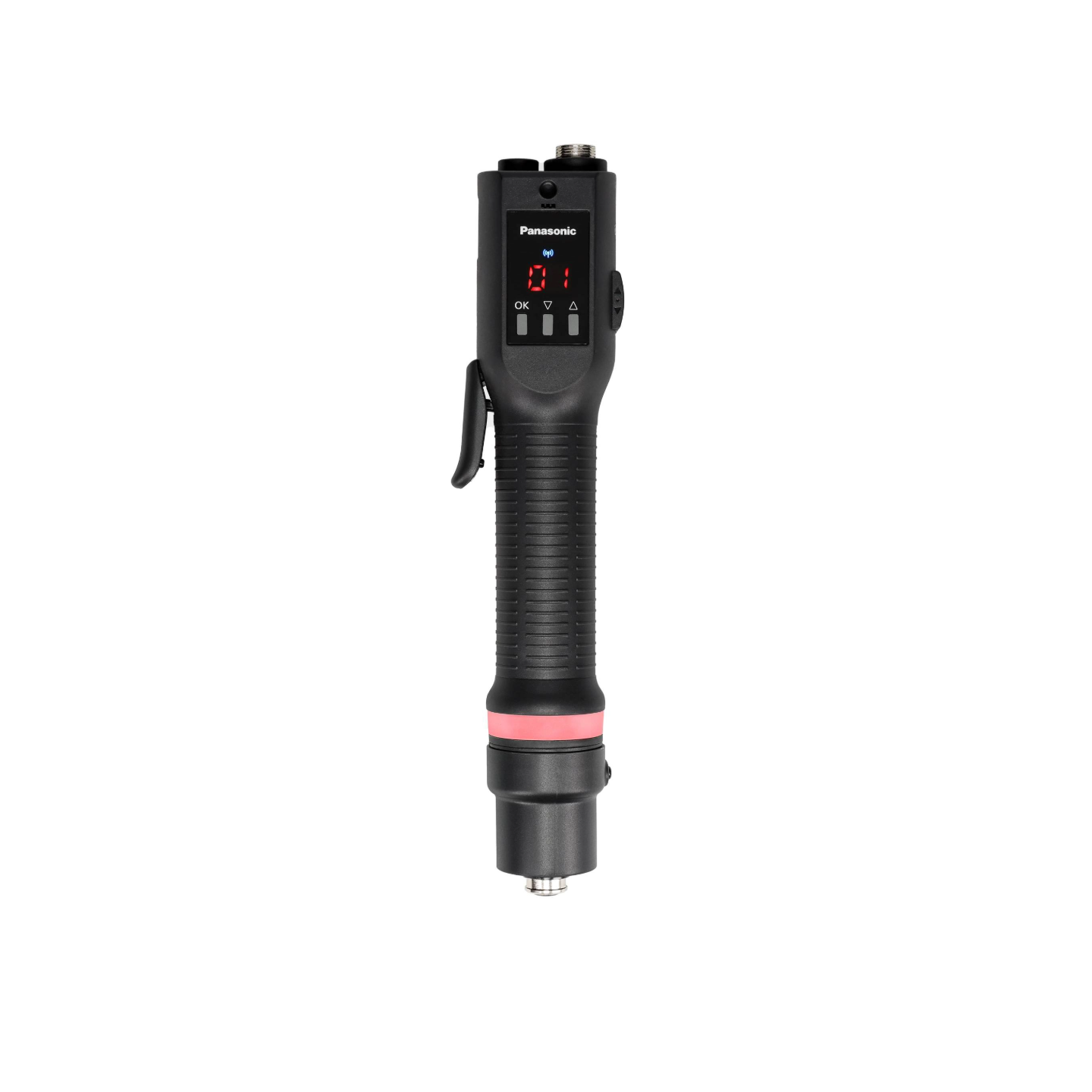

EYADA212WA-not-ok-red
EYARW1_Front_edit-1

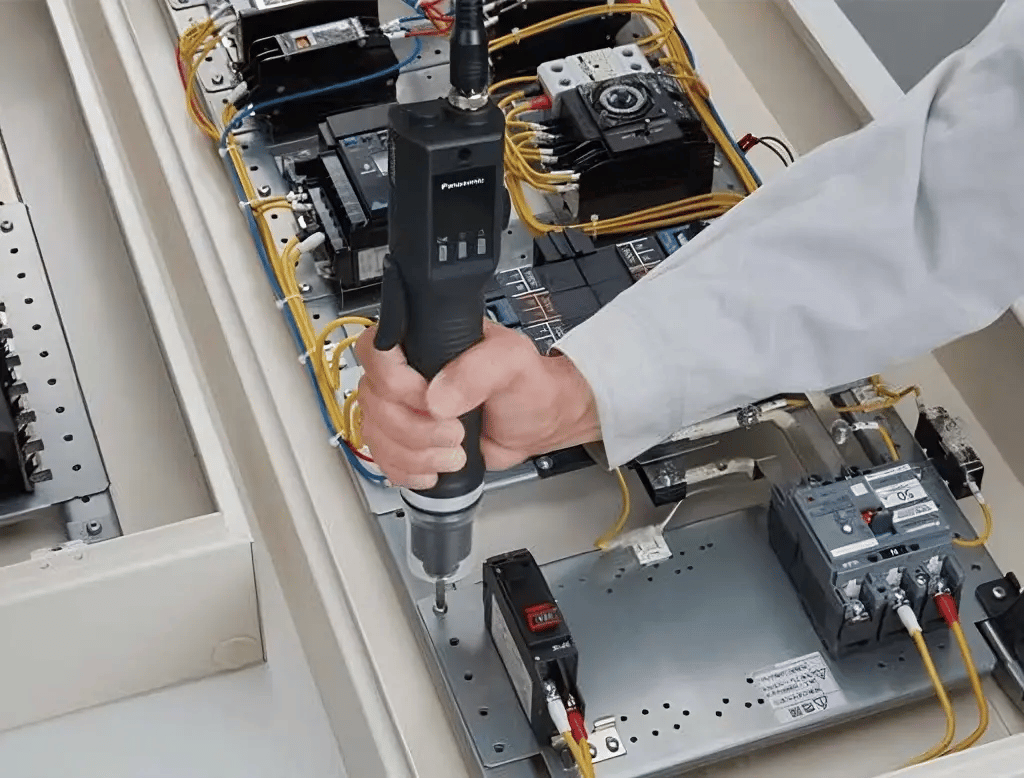

electric-screwdriver-lifestyle-image
new

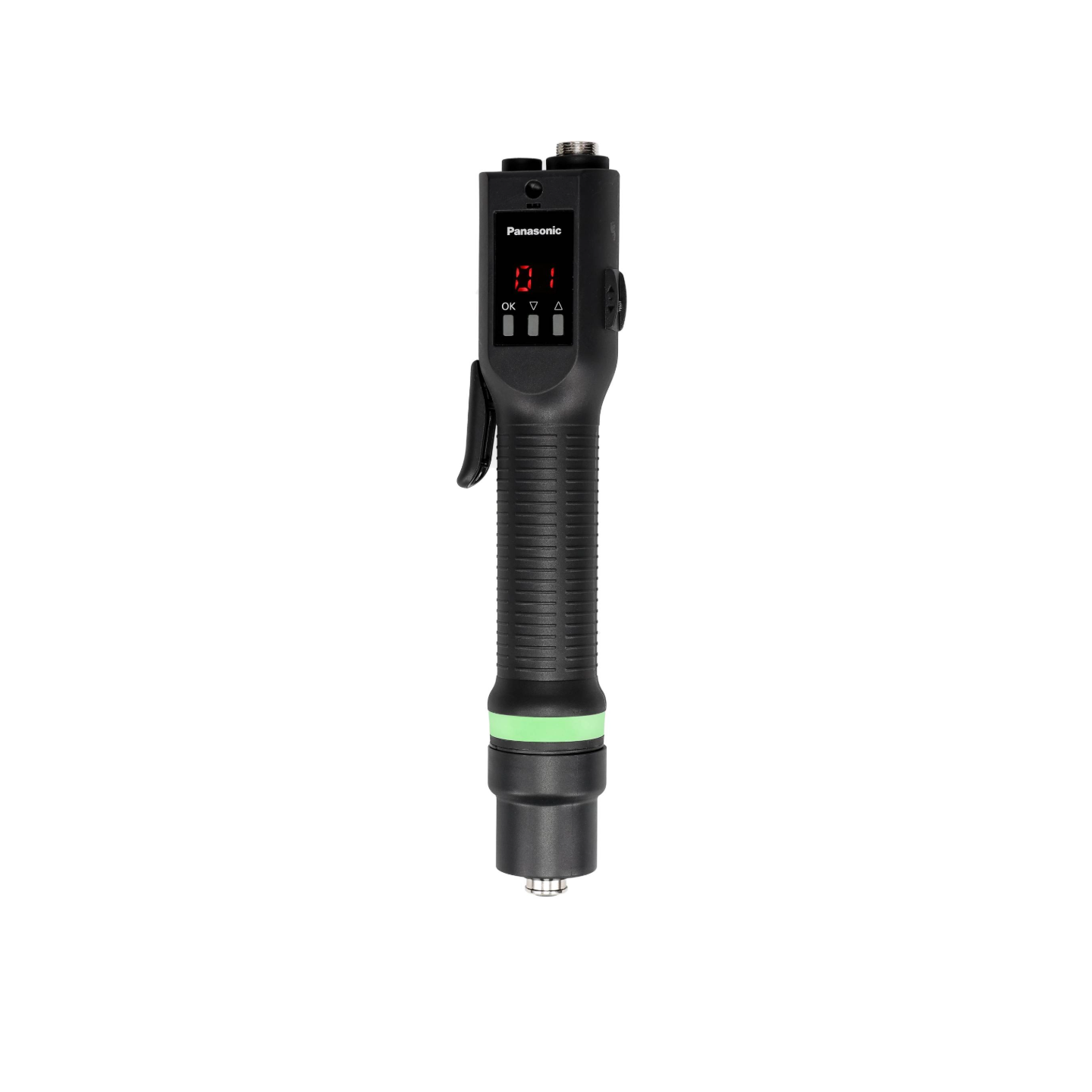

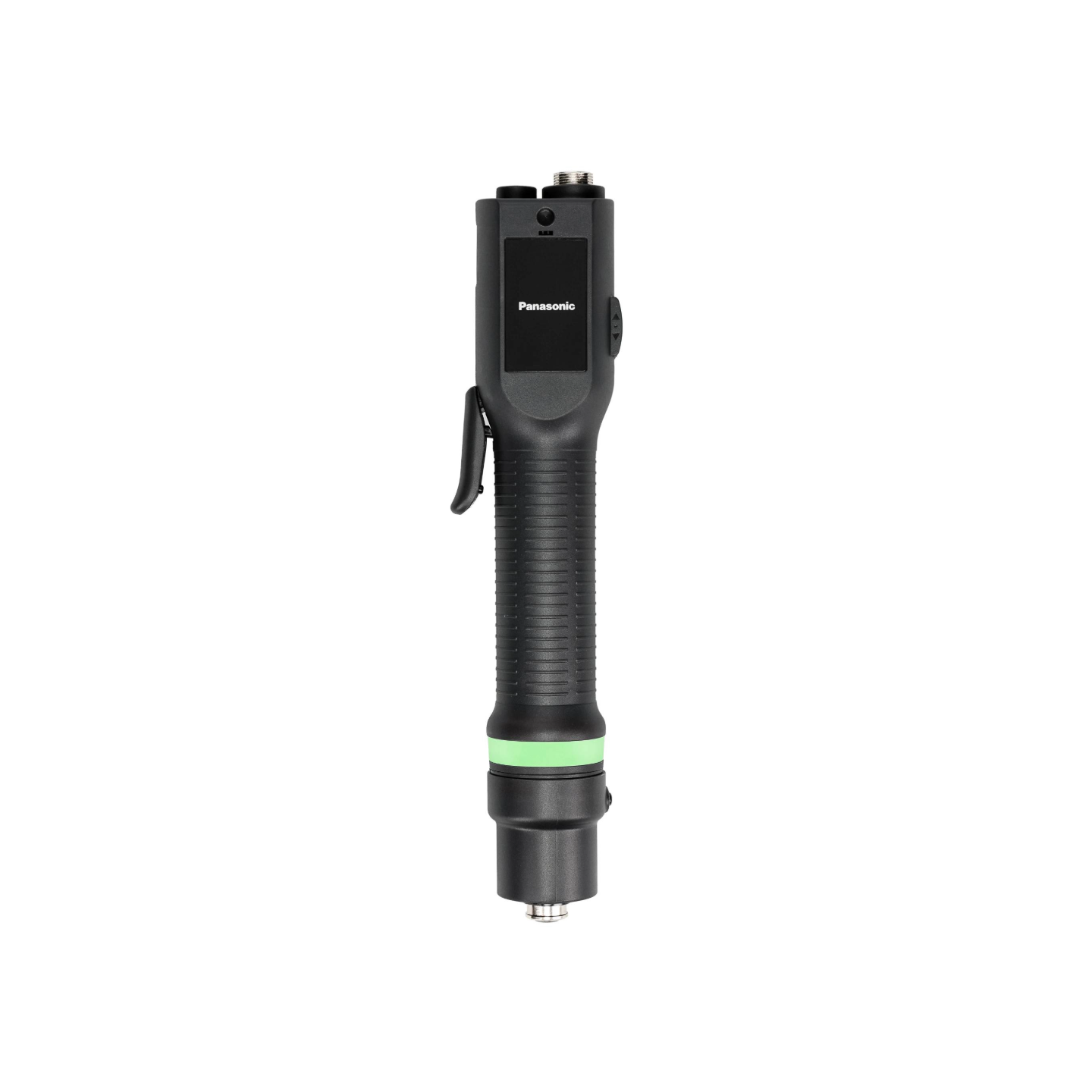

Type A Corded Electric Screwdriver System

SKU:

  • EYADA112WA
  • EYADA212WA
  • EYADA218WA
  • EYADA407WA

Improve accuracy, efficiency and quality control on your assembly line with our Corded Electric Screwdriver System. Available in four models, these lightweight handheld drivers deliver accurate driving in a .1Nm – 4.4Nm torque range and feature speeds of 160 - 1800 RPMs. Ideal for low-torque applications such as electronics and plastic products manufacturing. Control up to eight tools simultaneously with wireless communication to controller, and trace work history and data points such as OK/NOK, batch count, torque values and more. A true poka-yoke-inspired system that will reduce errors and improve accuracy throughout your assembly processes.

Contact Sales Find a Dealer

  • 0.1 - 4.4Nm torque range at 160 - 1,800 rpm
  • Wireless controller enables secure communication & control with up to 8 tools simultaneously
  • Data recording and traceability for greater visibility and control
  • Controller software collects and analyzes data for up to 80 tools
  • Ergonomic lever and push-to-start functionality for better efficiency and stress reduction

Panasonic's Poka-Yoke-Inspired Electric Screwdriver System

Torque Conversion and Wireless Screwdriver

Data such as fastened count, fastened quality, torque converted value* can be recorded, for quality check or daily report purposes.

*Torque converted value is an estimated value.  Use only for reference for tendency control etc. Not recommended for value certification.

Collect and analyze work data up to 80 tools

Work data such as work time, OK/NOK result and reverse rotation history from rework can be collected and used for work analysis and/or as productivity index. The optional Controller Management Software can collectively analyze work data up to 10 controllers. In addition, work data can be output in CSV format for more detailed analysis.

Ergonomic lever and push-to-start functionality

Designed for comfort and convenience, the Panasonic Corded Electric Screwdriver features an ergonomic lever for a secure grip and a push-to-start function for effortless operation. Perfect for precision work with minimal strain.



Type A Specifications

Models EYADA112WA EYADA212WA EYADA218WA EYADA407WA
Torque Setting Range 0.1-1.0Nm 0.3-2.5Nm 0.3-2.0Nm 1.5-4.4Nm
Rated rotation speed 300-1,200 rpm 300-1,200rpm 450-1,800rpm 160-650rpm
Power Supply Power adapter EYSZP001 (sold separately) Input : AC100-240V Output : DC30V/3A Power adapter EYSZP001 (sold separately) Input : AC100-240V Output : DC30V/3A Power adapter EYSZP001 (sold separately) Input : AC100-240V Output : DC30V/3A Power adapter EYSZP001 (sold separately) Input : AC100-240V Output : DC30V/3A
Torque Accuracy Repeated torque accuracy +10%(internal measurement conditions) Repeated torque accuracy +10%(internal measurement conditions) Repeated torque accuracy +10%(internal measurement conditions) Repeated torque accuracy +10%(internal measurement conditions)
Motor Brushless motor (coreless type, DC30V) Brushless motor (coreless type, DC30V) Brushless motor (coreless type, DC30V) Brushless motor (coreless type, DC30V)
Drive 1/4" Hex Quick Change 1/4" Hex Quick Change 1/4" Hex Quick Change 1/4" Hex Quick Change
Recommended Application Fasteners: M2 to M3.5 Fasteners: M2.5 to M4.5 Fasteners: M2.5 to M4 Fasteners: M3.5 to M5
(Converted)Torque value output Yes Yes Yes Yes
Data output method Wireless (WLAN) Wireless (WLAN) Wireless (WLAN) Wireless (WLAN)

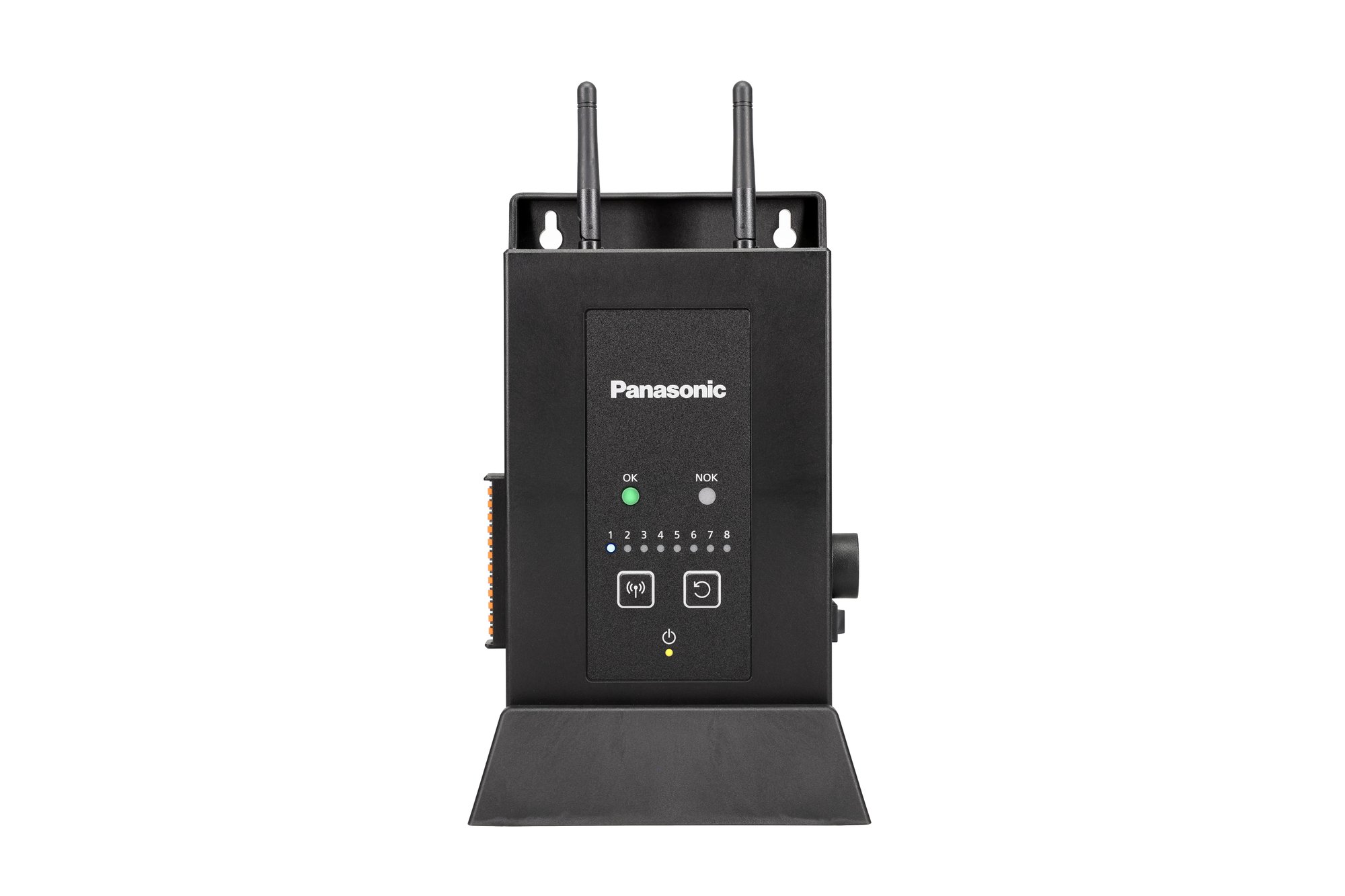

Controller Specifications

Model EYARW1B
Communication Data OK/NOK / Converted torque result / Forward/reverse / Number of rotations / Fastening time
AC Power Adapter(sold separately) Input: AC100-240V 50-60Hz / Output: DC24V/1.0Ah
Communication Method WLAN (IEEE802.11a/b/g/n)
Frequency Band 2.412-2.462GHz / 5.180-5.240GHz
Channel 2.4GHz band: 1ch-11ch / 5GHz band: 36, 40, 44, 48ch
Recommended Range 2.4GHz band: ~53 ft / 5GHz band: ~33 ft*
Number of Connectable Devices Maximum of 8 tools
Input/Output Terminal (I/O) Input: 8 / Output: 8
Communication Interface Ethernet × 2 / USB-A × 1 Barcode Scanner
Data Storage ~200,000 history data
Compatible Tools EYADA112WA EYADA212WA EYADA218WA EYADA407WA EYADA112WB EYADA212WB EYADA218WB EYADA407WB
